Power Distribution / Conditioning / Isolation / DC Blocking

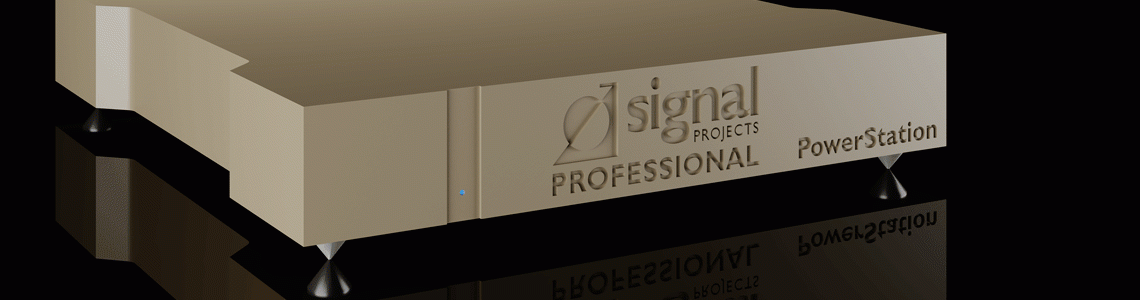

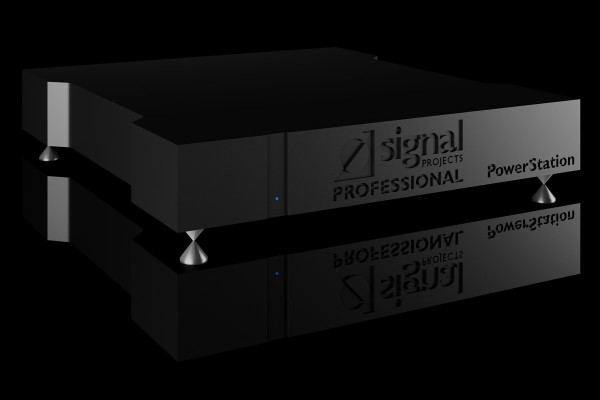

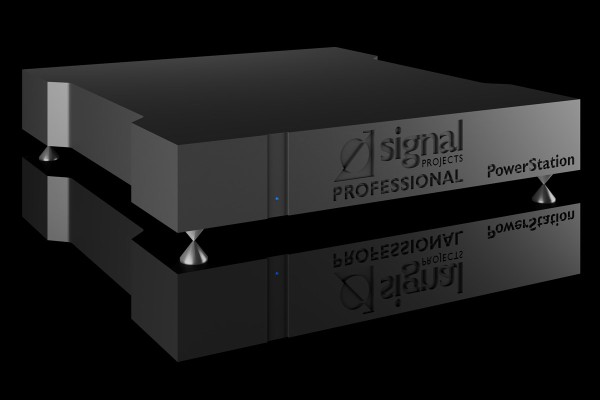

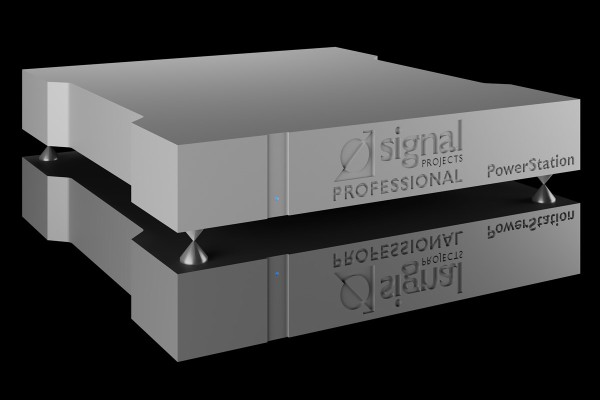

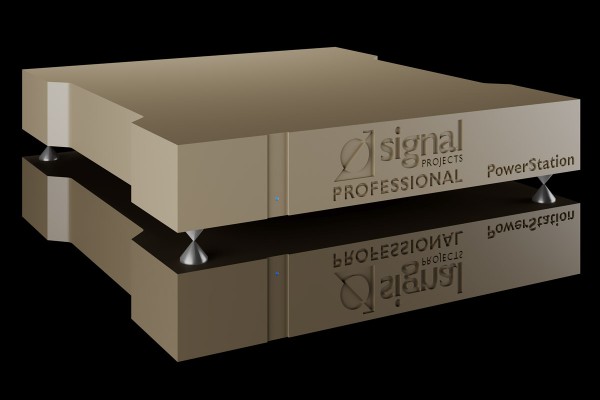

- Power Distribution. PowerStation is a 7-outlet (EU, UK, US, AU) power distribution device for advanced audio and video electronic components.

- Power Filtration. The unit contains an ultra-low leakage 30A power line filter against EMI (Electro-Magnetic Interference) and RFI (Radio Frequency Interference), which can support the highest current professional electronics of today.

- Power Isolation. The isolation circuit of PowerStation is based on two toroidal transformers of 400W or 600W (depending upon the version), in balanced or unbalanced configuration (depended upon customer's preference). Our isolation transformers are made of ultra-high purity copper coils, with 4-edge binding topology on the secondary and 400Hz toroidal core plates with custom refined surfaces, providing extreme performance, zero ringing and unprecedented efficiency. The exceptional design of our balanced transformers constrains all fields to the core material and eliminates radiations of any type of electromagnetic interference. PowerStation provides 2, 3 or 4 isolated outputs (depending upon user’s preference) for pre-amplification devices, mixing consoles, digital converters and any other low voltage consumption electronic device.

- DC Blocking. The circuit of PowerStation is using a high current and high efficiency DC blocking stage that will eliminate potential DC leakage, providing maximum safety and ensuring maximum performance of all connected professional devices.

- Virtual Grounding. Thanks to the exceptional design of our power toroidal transformers and the hard wiring configuration of PowerStation the unit provides a high efficiency virtual grounding circuit, which can eliminate (when connected to properly grounded power cables) all grounding problems of any recording studio setup.

- Ultra-High Purity Copper Wiring. The internal wiring of PowerStation is based on our 7N copper conductors used on Signal Projects power cables. The exceptional characteristics of these power conductors provide significantly increased conductivity and thus the lowest possible propagation delay between the internal components of the unit. This is helping PowerStation to perform with impressive clarity, with superb neutrality and excellent balance beyond the limits of audible frequencies, and at the same time to reveal plenty of detail and to draw the 3 dimensions of the stage with excellent accuracy.

- High Density Epoxy Resin Insulation. For the highest possible Dielectric Strength (which exceeds 4000V/mil) between the internal parts, boards, components and wires, and for the lowest possible Dissipation Factor, the circuit of PowerStation is covered by an increased density epoxy resin formula, that eliminates transformers’ ringing and guarantees maximum Volume Resistivity, Surface Resistivity and Arc Resistance. Practically, our resin insulation formula provides increased safety and helps connected devices to perform with higher clarity, better dynamics and completely free of unwanted noises.

- Solid Block Acetal. The chassis of PowerStation is made of solid block Acetal and is engineered in some of the most accurate CNC machines of today, in Signal Projects factory. The topology and the placement of the internal components of PowerStation, have been designed and calculated by a custom-made software, in a way to provide excellent insulation, efficient shielding and maximum protection against magnetically coupled and all kinds of external emitted interference.

- Damping Base. For the elimination of unwanted resonances that usually interfere within audible frequencies, either during reproduction or recording, we have developed a NUDEC Polycarbon base/cover, that improves damping and provides excellent support the chassis of PowerStation.

- Custom Upgraded Plugs. The outlets are custom upgraded in our lab, to comply with the voltage and current requirements of our circuits.
